25*25*4+18*18*4MM L1 L5 Dual-band High-Accuracy Stacked Ceramic GPS Active Antenna
25*25*4+18*18*4MM L1 L5 Dual-band High-Accuracy Stacked Ceramic GPS Active Antenna
25*25*4+18*18*4MM L1 L5 Dual-band High-Accuracy Stacked Ceramic GPS Active Antenna - Image 2
25*25*4+18*18*4MM L1 L5 Dual-band High-Accuracy Stacked Ceramic GPS Active Antenna - Image 3

25*25*4+18*18*4MM L1 L5 Dual-band High-Accuracy Stacked Ceramic GPS Active Antenna

Contact Us
Get a quote

Ceramic Antenna Specification

Antenna

#ItemSpecifications
1Frequency range1575/1176MHz
2Gain27±2dBi
3V.S.W.R≤2.0
4Impedance50Ω
5PolarizationRHCP
6Power10W

Mechanical

#ItemSpecifications
1Inner structureFR4+Ceramic
2External structureN/A
3Antenna size25*25*4+18*18*4MM
4Cable typeRG58 cable or optional
5Connector typeSMA male or optional
6Mounting methodConnector mount

Environmental

#ItemSpecifications
1Operating temperature-40℃~+80℃
2Storage temperature-40℃~+85℃
3Environmentally friendlyROHS compliant

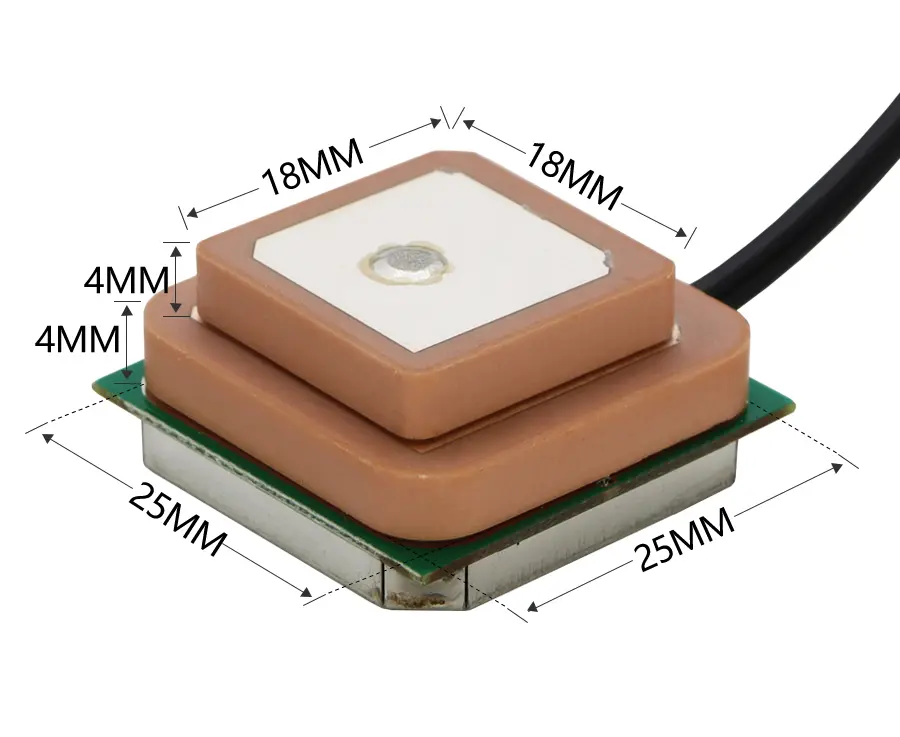

Ceramic Antenna Size

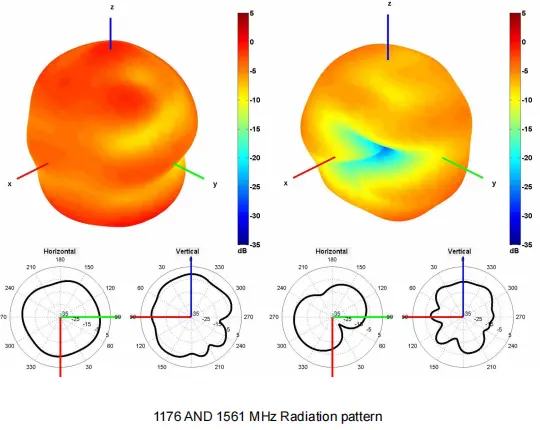

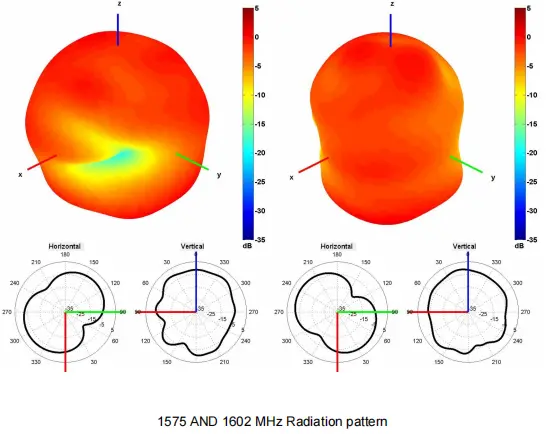

Ceramic Antenna 3D Radiation Patterns
