| # | Item | Specifications |
|---|---|---|
| 1 | Frequency range | 5150-5850MHz |
| 2 | Gain | 14dBi |
| 3 | V.S.W.R | ≤2.0 |
| 4 | Impedance | 50Ω |
| 5 | Polarization | Vertical |
| 6 | Power | 10W |
| # | Item | Specifications |
|---|---|---|
| 1 | Inner structure | PCB |
| 2 | External structure | PC+PBT/TPEE |

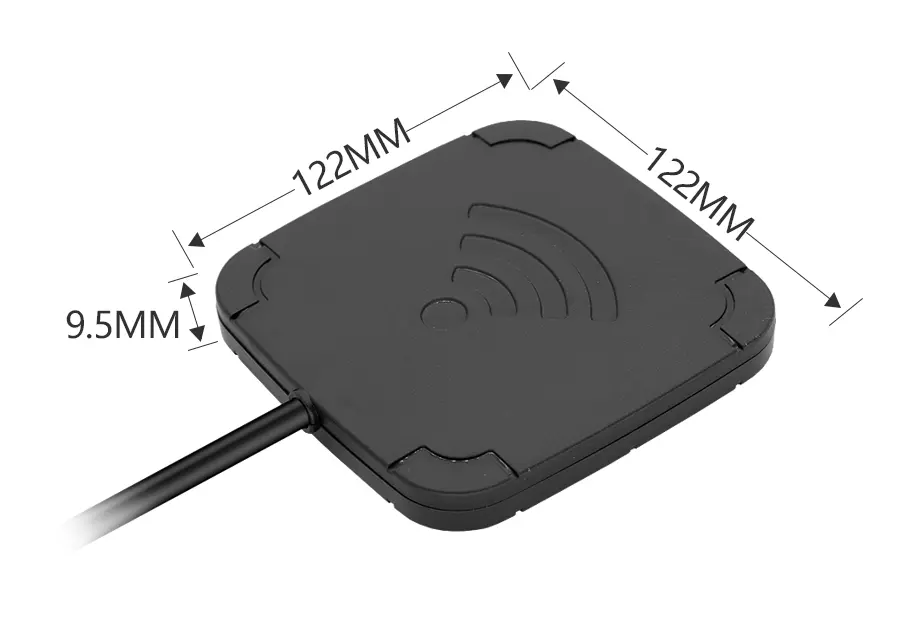

| 3 | Antenna size | 122*122*9.5MM |
| 4 | Cable type | RG141 cable |
| 5 | Connector type | SMA male or optional |
| 6 | Mounting method | Connector mount |
| # | Item | Specifications |
|---|---|---|
| 1 | Operating temperature | -40℃~+80℃ |
| 2 | Storage temperature | -40℃~+85℃ |
| 3 | Environmentally friendly | ROHS compliant |
