| # | Item | Specifications |
|---|---|---|
| 1 | Frequency range | 698-960/1710-2700MHz |
| 2 | Gain | 5.82/5.22dBi |
| 3 | V.S.W.R | ≤3.0 |
| 4 | Impedance | 50Ω |
| 5 | Polarization | Vertical |
| 6 | Power | 10W |
| # | Item | Specifications |
|---|---|---|
| 1 | Inner structure | PCB |
| 2 | External structure | ABS |

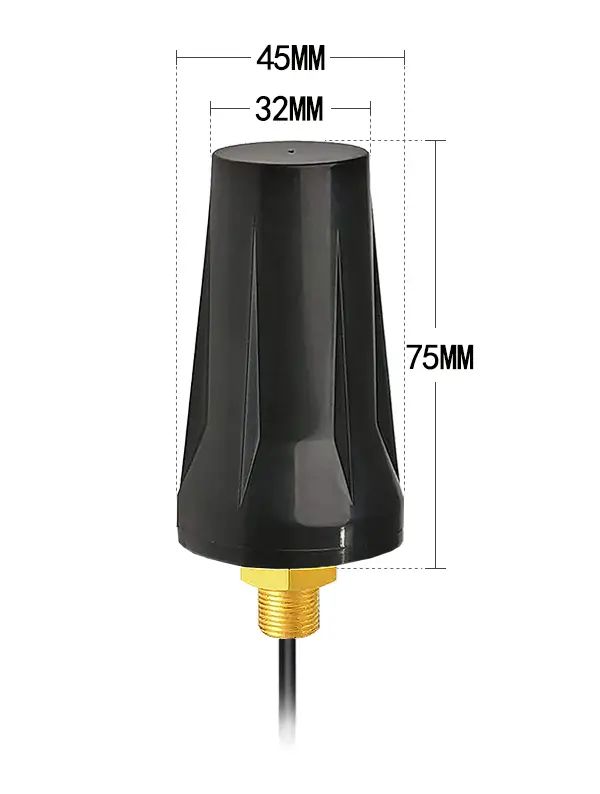

| 3 | Antenna size | 75*45MM |
| 4 | Cable type | RG174 cable or optional |
| 5 | Connector type | SMA male or optional |

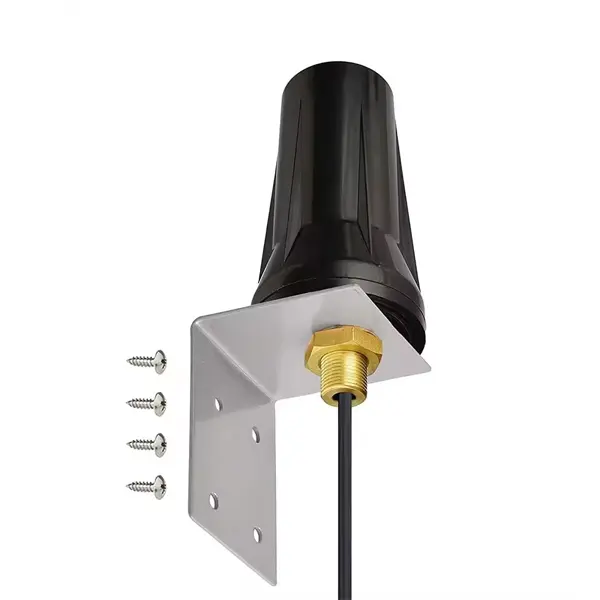

| 6 | Mounting method | Screw mount |
| # | Item | Specifications |
|---|---|---|
| 1 | Operating temperature | -40℃~+80℃ |
| 2 | Storage temperature | -40℃~+85℃ |
| 3 | Environmentally friendly | ROHS compliant |
