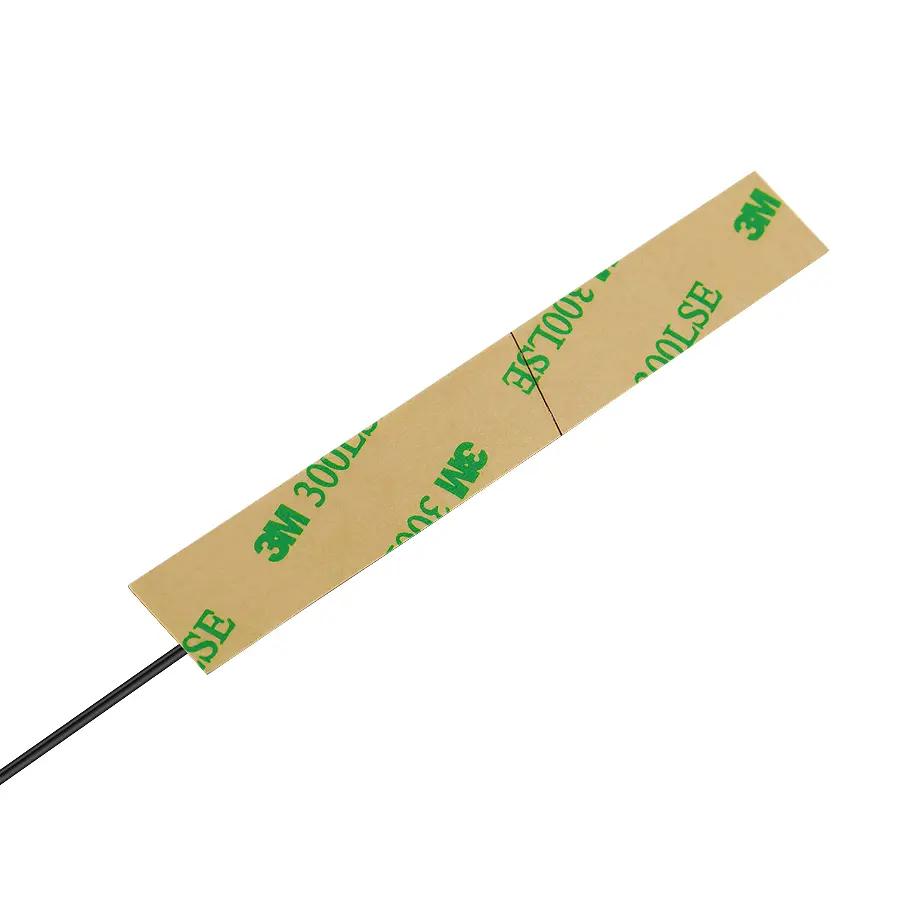

98*14MM 4G LTE Internal Flexible FPC Antenna

The FPC antenna operates across a frequency range of 698-960 MHz and 1710-2700 MHz, offering a gain of 3.82 dBi in the lower range and 3.77 dBi in the higher range. The antenna maintains a Voltage Standing Wave Ratio (VSWR) of ≤2.5 in the 698-960 MHz range and ≤2.0 in the 1710-2700 MHz range, ensuring efficient signal transmission. With a 50Ω impedance and vertical polarization, it is designed to handle up to 10W of power. The antenna features an FPC inner structure and measures 98 x 14 mm in size. It uses RF1.13 cable or an optional cable type, with an IPEX connector or another optional connector type. The adhesive mount allows for easy installation. The antenna is suitable for a wide range of environments, operating between -40℃ to +80℃ and storing between -40℃ to +85℃. Additionally, it is environmentally friendly, meeting ROHS compliance standards.
